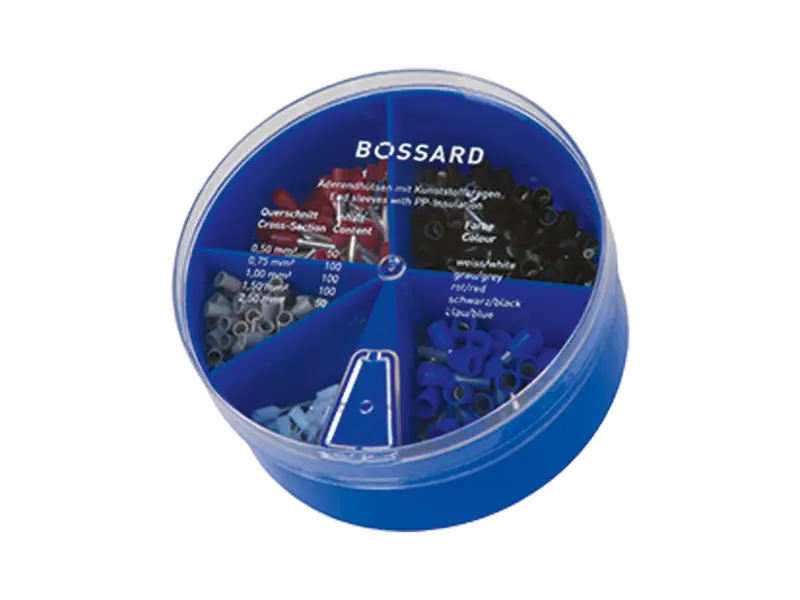

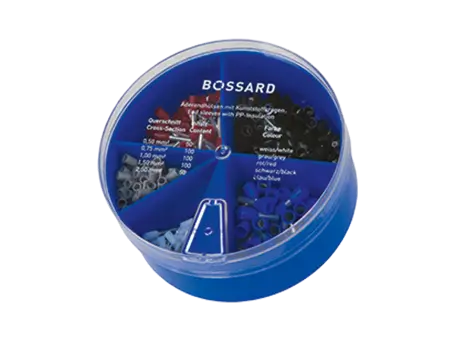

Product image of Assortment box with ferrules, round insulated single ferrules, colourcode 1D Standard 1D
  1. Product image of Assortment box with ferrules, round insulated single ferrules, colourcode 1D Standard 1D
  2. Technical drawing with dimensions of Assortment box with ferrules, round insulated single ferrules, colourcode 1D Standard 1D
Overlay

1

/2
Product image of Assortment box with ferrules, round insulated single ferrules, colourcode 1D Standard 1D
  • Product image of Assortment box with ferrules, round insulated single ferrules, colourcode 1D Standard 1D
  • Technical drawing with dimensions of Assortment box with ferrules, round insulated single ferrules, colourcode 1D Standard 1D

Assortment box with ferrules, round insulated single ferrules, colourcode 1D Standard 1D

BN 22554
Standard
DIN 46228-4
Material
Copper
Surface
tin-plated
Design
Standard 1D

Description

Product features

  • Insertion funnel is made of polypropylene
  • Heat resistant: up to +105 °C

Scope of Supply

Code 9032143

Anzahl / Kabelbereich mm2 / L / Farbe

50 / 0,5 / 8 / orange -- 100 / 0,75 / 8 / white -- 100 / 1 / 8 / yellow -- 100 / 1,5 / 8 / red -- 50 / 2,5 / 8 / blue

Code 9032144

Anzahl / Kabelbereich mm2 / L / Farbe

50 / 4 / 10 / grey -- 20 / 6 / 12 / black -- 20 / 10 / 12 / ivory -- 10 / 16 / 12 / green
