FASTEKS® Threaded Inserts

FASTEKS® FTI threaded inserts made of steel or stainless steel create precise, durable female threads in components made of light metal and other materials with low shear strength.

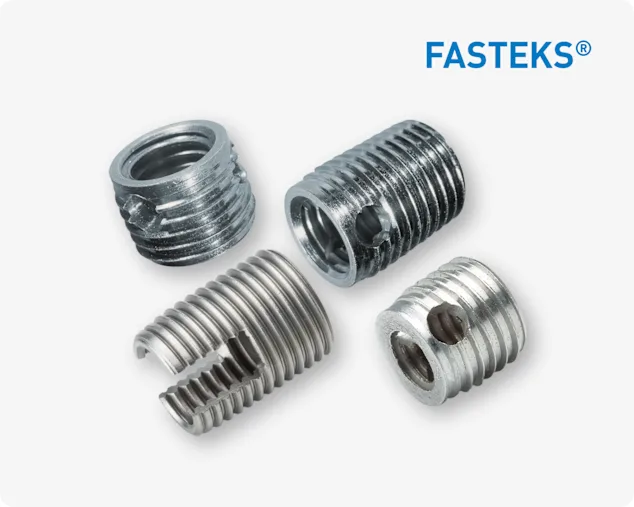

Four silver FASTEKS metal threaded inserts in different shapes on a white background with FASTEKS logo.
Go to eShop
Overlay
Two people discussing design of a fastener.

Our FASTEKS® self-tapping threaded inserts are available in a large variety of designs and sizes, directly from stock. Below, you will find the corresponding order designations for each version.

FASTEKS® FTI Threaded Inserts Product Overview

Design 1: Threaded Inserts with Cutting Slots

Silver FASTEKS metal threaded insert with self-tapping slot profile on a white background.
  • Material: Steel, case-hardened, zinc-plated, blue passivated / INOX 1.4305
  • Available in M2.5, M3, M4, M5, M6, M6a, M8, M10, M12, M14, M16, and M20

Features:

  • Proven standard product suitable for all applications
  • 2 cutting slots, chip-forming design
  • The first two threads are tapered – the insert functions like a thread cutter
  • For materials with low to medium tensile strength (tends to compress slightly in harder materials)

Ordering designations

Overlay
Silver FASTEKS metal threaded insert with self-tapping slot profile on a white background.

Design 2: Threaded Inserts with Cutting Holes, Long

Silver FASTEKS metal threaded insert with three sharp cutting holes on a white background.
  • Material: Case-hardened steel, zinc-plated, blue passivated / INOX 1.4305
  • Available in M3, M4, M5, M6, M8, M10, M12, M14, and M16

Features:

  • Further development of version 1 (with cutting slots)
  • Designed for materials with higher tensile strength (does not compress)
  • Thread cutting is achieved through three extremely sharp cutting holes
  • The first two threads are tapered – the insert functions like a thread cutter
  • Chip-forming design

Ordering designations

Overlay
Silver FASTEKS metal threaded insert with three sharp cutting holes on a white background.

Design 3: Threaded Inserts with Cutting Holes, Short

Short silver FASTEKS metal threaded insert with side cutting hole on a white background.
  • Material: Case-hardened steel, zinc-plated, blue passivated / INOX 1.4305
  • Available in M3, M4, M5, M6, M8, M10, M12, M14, and M16

Features:

  • Advanced version of type 1 (with cutting slots)
  • For materials with higher tensile strength (does not compress)
  • Thread cutting achieved through three extremely sharp cutting holes
  • The first two threads are tapered – the insert acts like a thread cutter
  • Chip-forming design

Ordering designations

Overlay
Short silver FASTEKS metal threaded insert with side cutting hole on a white background.

Design 4: Threaded Inserts with Chip Reservoir, Long

Silver FASTEKS metal threaded insert with side hole and chip reservoir on a white background.
  • Material: Case-hardened steel, zinc-plated, blue passivated / INOX 1.4305
  • Available in M4, M5, M6, M8, and M10

Features:

  • Advanced version of type 2 (with cutting holes)
  • Suitable for all applications requiring a chip-free internal thread (e.g. for electronic assemblies)
  • Chip reservoir ensures a consistently clean internal thread
  • No compression, suitable for materials with higher tensile strength

Ordering designations

Overlay
Silver FASTEKS metal threaded insert with side hole and chip reservoir on a white background.

Design 5: Threaded Inserts with Chip Reservoir, Short

Short silver FASTEKS metal threaded insert with side hole and integrated chip reservoir on a white background.
  • Material: Case-hardened steel, zinc-plated, blue passivated / INOX 1.4305
  • Available in M4, M5, M6, M8, and M10

Features:

  • Advanced version of type 3 (with cutting holes)
  • Suitable for all applications requiring a chip-free internal thread (e.g. for electronic assemblies)
  • Chip reservoir ensures a consistently clean internal thread
  • No compression, suitable for materials with higher tensile strength

Ordering designations

Overlay
Short silver FASTEKS metal threaded insert with side hole and integrated chip reservoir on a white background.

Download Our Brochure for More Information

Thumbnail FASTEKS® Threaded Inserts

FASTEKS® Threaded Inserts

FASTEKS® steel or stainless steel threaded inserts create precise, durable internal threads in workpieces made of light metal alloy and other materials with low shear resistance.

391.4 KB | pdf
