Tappex® 074 - Heat Inserter for Press-In Threaded Inserts

BN 56060

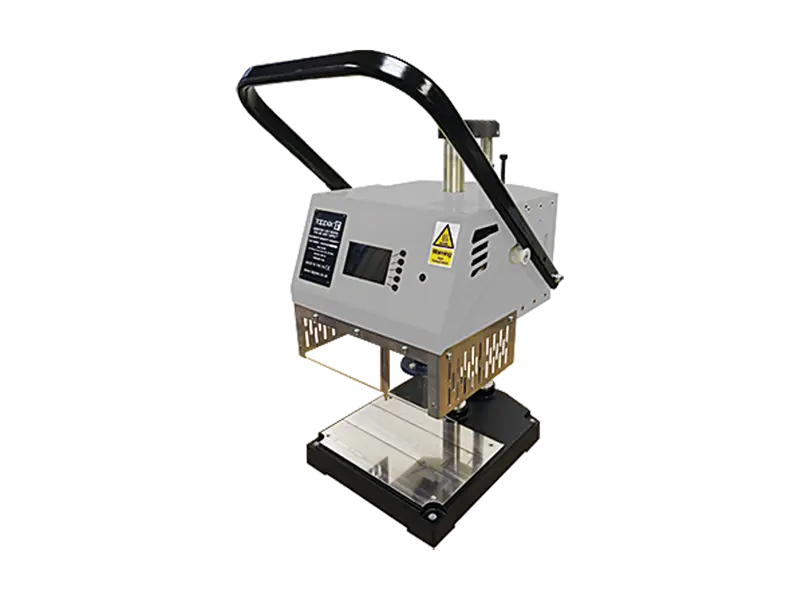

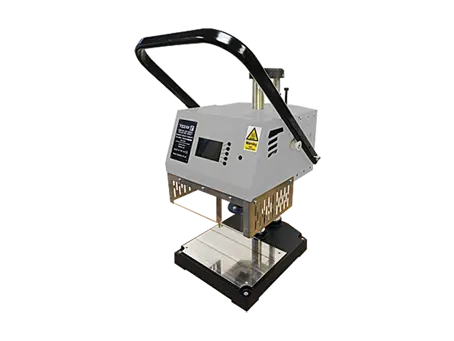

Product image of Tappex® 074 - Heat Inserter for Press-In Threaded Inserts
  1. Product image of Tappex® 074 - Heat Inserter for Press-In Threaded Inserts
  2. Technical drawing with dimensions of Tappex® 074 - Heat Inserter for Press-In Threaded Inserts
Overlay

1

/2
Product image of Tappex® 074 - Heat Inserter for Press-In Threaded Inserts
  • Product image of Tappex® 074 - Heat Inserter for Press-In Threaded Inserts
  • Technical drawing with dimensions of Tappex® 074 - Heat Inserter for Press-In Threaded Inserts

Tappex® 074 - Heat Inserter for Press-In Threaded Inserts

BN 56060
Brand
Tappex®
Brandtype
074
Material
Multiple Materials
Product application features
Product application features

Description

Product features

  • Variable temperature up to 450 °C
  • Stroke length 65 mm
  • Max. working height (with tip removed) 220 mm
  • Voltage 110-230 V AC 50-60 Hz
  • Frequency: 50-60 Hz
  • Output 400 W
  • Weight 31,5 kg
  • Installation speed control
  • Adjustable stop position with indicator light
  • Baseplate and working area illuminated by dual LED lightning

Factsheet: Download (PDF)

Variants
