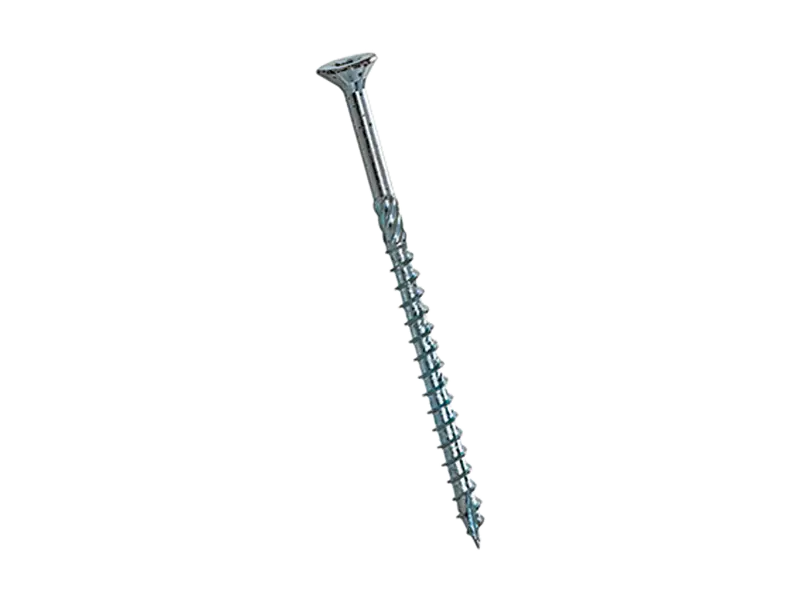

제품 이미지: Universal hexalobular (6 Lobe) socket flat countersunk head wood screws partially threaded, cutting ribs under the head, friction thread, end mill cutter
  1. 제품 이미지: Universal hexalobular (6 Lobe) socket flat countersunk head wood screws partially threaded, cutting ribs under the head, friction thread, end mill cutter
  2. 치수가 포함된 기술 도면: Universal hexalobular (6 Lobe) socket flat countersunk head wood screws partially threaded, cutting ribs under the head, friction thread, end mill cutter
Overlay

1

/2
제품 이미지: Universal hexalobular (6 Lobe) socket flat countersunk head wood screws partially threaded, cutting ribs under the head, friction thread, end mill cutter
  • 제품 이미지: Universal hexalobular (6 Lobe) socket flat countersunk head wood screws partially threaded, cutting ribs under the head, friction thread, end mill cutter
  • 치수가 포함된 기술 도면: Universal hexalobular (6 Lobe) socket flat countersunk head wood screws partially threaded, cutting ribs under the head, friction thread, end mill cutter

Universal hexalobular (6 Lobe) socket flat countersunk head wood screws partially threaded, cutting ribs under the head, friction thread, end mill cutter

BN 20594
Headform
Countersunk head 90°
Drive
Hexalobular socket
Thread
partially threaded
Material
Steel
Material execution
case-hardened
Surface
zinc plated blue, added lubricant

안전 지침

운송 및 보관

ISO 4042

Quenched and tempered fasteners ≥ 360 HV and tempered case-hardened fasteners with electroplated coatings: Susceptible to hydrogen embrittlement!

Further notice to residual risks can be found on our web page: Notes on use
