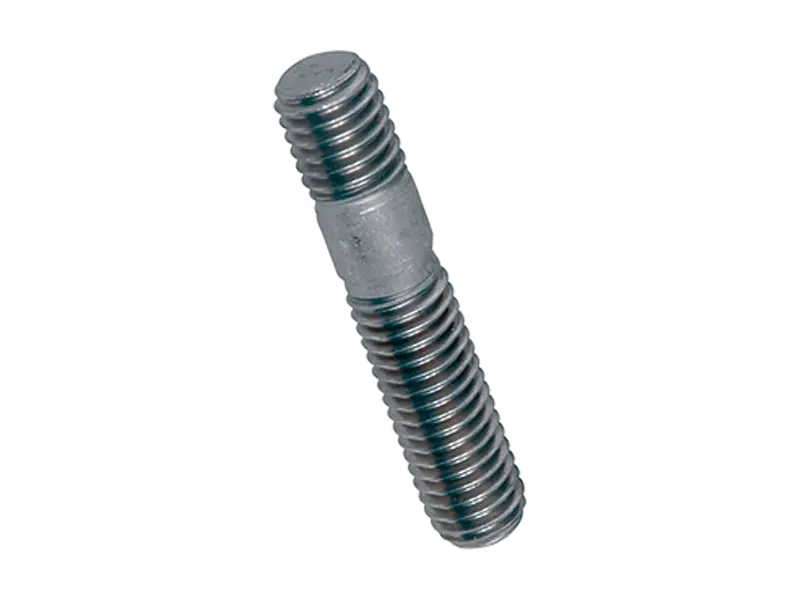

Stud bolts tap end without interference fit, length ~1,25 d

BN 666
Overlay

1

/3

Stud bolts tap end without interference fit, length ~1,25 d

BN 666
표준
DIN 939 Fo ~UNI 5911 ~SN 212202 ~ČSN 021176
Material
Stainless steel
Material type
A4

설명

추가 정보

The commercial quality is class A4-70 (tensile strength 700 N/mm2) for thread diameters M6 and up.

Tap end b1 for assembly with normal thread 6H / 6g

조립

1. Nut end 2. Tap end b1

변형

CAD
