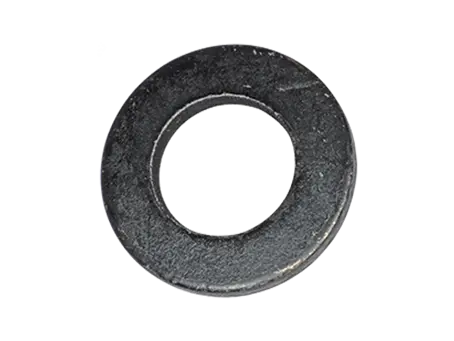

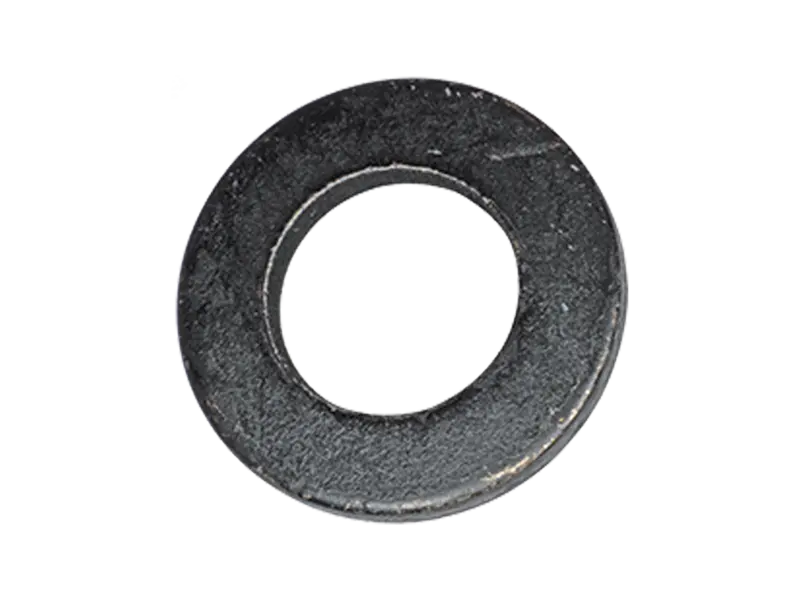

Special flat washers without chamfer, for screws up to property class 8.8

BN 20508
Overlay

1

/2

Special flat washers without chamfer, for screws up to property class 8.8

BN 20508
표준
DIN 125 A (Standard withdrawn) ISO 7089 ~UNI 6592 ~ČSN 021702
Material
Steel
Surface
zinc plated blue with CresaCoat® C 307 Black
Hardness
200 HV

설명

추가 정보

CresaCoat® dry coating is a non-electrolytically applied, thin coating with integrated lubricating properties and additional corrosion protection. Certificate is available on request for specific properties such as friction coefficients. For fasteners with a tribological coating, it is essential to clarify the requirements in advance, in particular a validation of the friction values is required for nominal dimensions > M12!

변형

CAD
