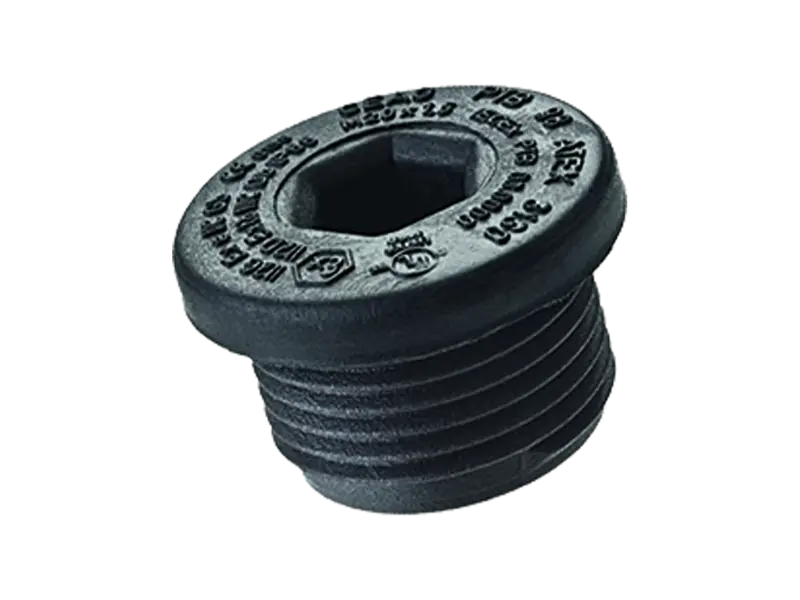

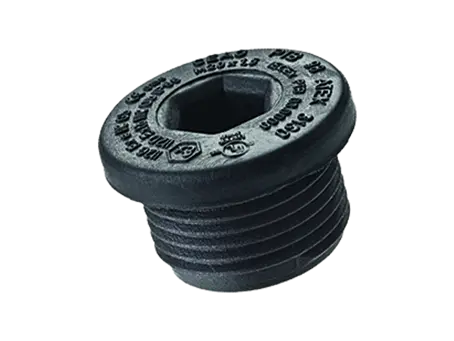

Ex-screw plugs with metric thread and internal hexagonal

BN 22308
Overlay

1

/2

Ex-screw plugs with metric thread and internal hexagonal

BN 22308
Drive
Hexagon socket
Material
Polyamide
Material type
PA 6.6 GF25
Color
deep black RAL 9005
Product application features

Beskrivning

Produktbeskrivning

  • Fibre glass reinforcement (GF 25)
  • Connecting thread: metric as per EN 60423
  • For secure sealing of unused threaded or clearance hole
  • Group (zone): II 2 G (1, 2) / II 2 D (21, 22)
  • Marking: Ex e IIC Gb / Ex tb IIIC Db
  • Protection grade: IP66 (M16x1,5 - M50x1,5) / IP65 (M63x1,5)

Mer information

Test standard: EN IEC 60079-0:2018, IEC 60079-0:2017 / EN IEC 60079-7:2015+A1, IEC 60079-7:2015+A1 / EN 60079-31:2014, IEC 60079-31:2013. EC-Type certificate: PTB 98 ATEX 3130. IECEx certificate: IECEx PTB 03.000. UL / CSA-File: E254795 (M16x1,5 - M50x1,5).
