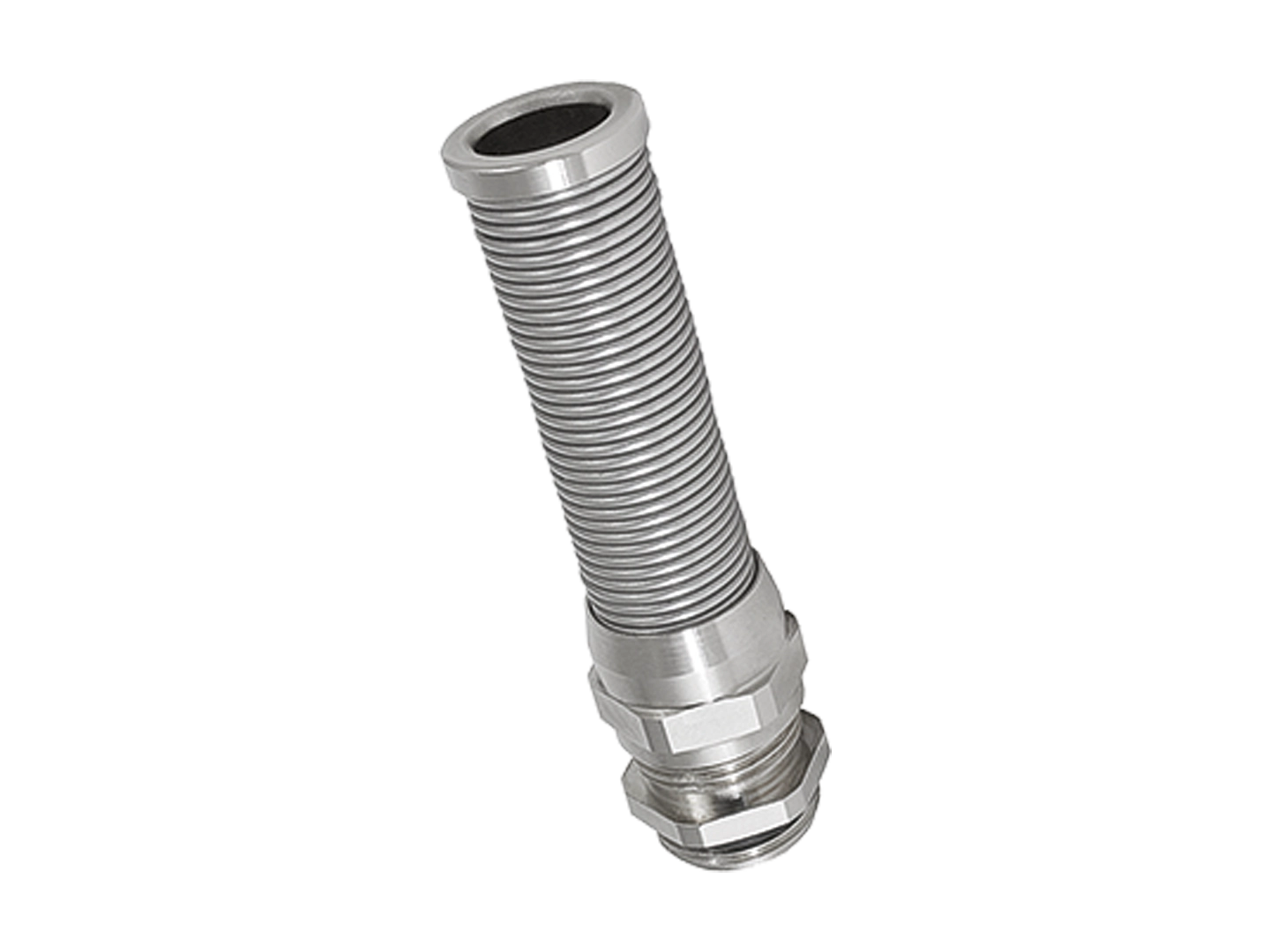

Produktbeskrivning

• Dome nut: brass CuZn39Pb3, nickel-plated

• Cable guarding spring: stainless steel 1.4305

• Lamellar insert: polyamide PA 6 V-2

• Sealing ring: polychloroprene-Nitrile rubber CR/NBR

• Gland body: brass CuZn39Pb3, nickel-plated

• O-ring: Nitrile rubber NBR

• Connecting thread: metric, as per EN 60423

• With bending protection and cable guarding

• For permanent protection of flexible cables when entry in enclosures

• Reduces bending loads

• Protects against cable core break

• Integrated anchorage, protection against twisting, wide sealing and clamping range, easy-to-install

• Temperature range: -20 °C ... +100 °C (dynamic), -40 °C (static, short term)

• Protection grade: IP68 - 5 bar
