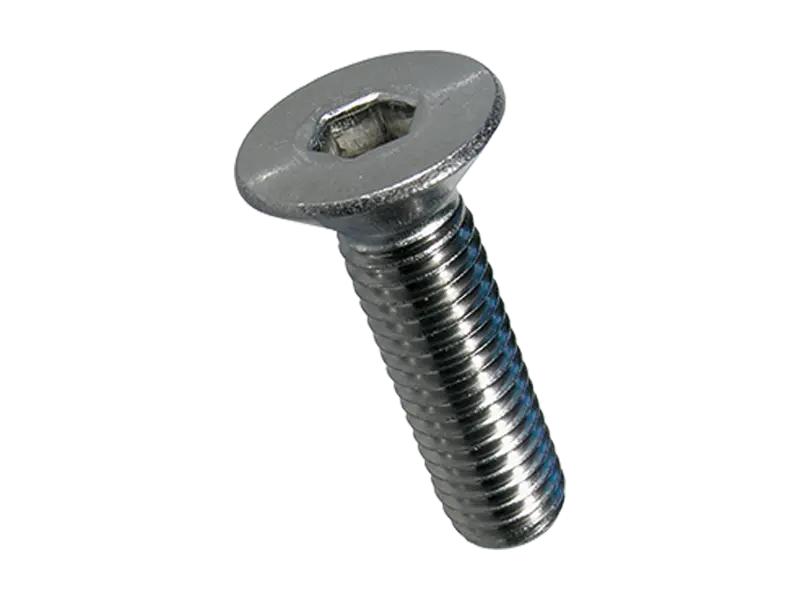

Product image of Hex socket flat countersunk head screws fully threaded
  1. Product image of Hex socket flat countersunk head screws fully threaded
  2. Technical drawing with dimensions of Hex socket flat countersunk head screws fully threaded
Overlay

1

/2
Product image of Hex socket flat countersunk head screws fully threaded
  • Product image of Hex socket flat countersunk head screws fully threaded
  • Technical drawing with dimensions of Hex socket flat countersunk head screws fully threaded

Hex socket flat countersunk head screws fully threaded

BN 616
Standard
DIN 7991 (Standard withdrawn) ~ISO 10642 ~UNI 5933
Headform
Countersunk head 90°
Drive
Hexagon socket
Thread
fully threaded
Material
Stainless steel
Material type
A2

Description

Additional information

The general change-over from DIN 7991 to ISO 10642 in the practice requires a verification of the application. Fasteners to the given specification have a reduced loadability due to the head geometry according to ISO 3506-1.
